Features
The CHATILLON® SLC Series loadcells are full-bridge strain gauge sensors complete with 15-pin plug. These loadcells are used with the Chatillon DFS-R-ND
Series digital indicator. They may also be used with the Chatillon TCD Series digital force testers (recalibration with a TCD Series Console is required).
The loadcell values and sensitivity factors are stored in memory within the sensor plug. When connected to a DFS-R-ND indicator or TCD Series force
tester, the capacity and calibration points are automatically recognized by the instrument. The instrument then becomes a full-featured load measurement
instrument. The loadcells are connected to the DFS-R-ND or TCD Console with a retractable cord that extends fully to nearly 9 ft. (3 m).
Features
- Plug & Play Operation
- DFS-R-ND Gauge
- TCD110, TCD225 or TCD1100 Digital Testers
- Accuracy up to 0.1% FS
- NIST Calibration with Data
- 1 Year Warranty
| Model |
SLC-250G |
SLC-0002 |
SLC-0010 |
SLC-0025 |
SLC-0050 |
SLC-0100 |
SLC-0200 |
SLC-0500 |
SLC-1000 |
SLC-2000 |
SLC-5000 |
SLC-10000 |
| lbf |
0.5 x 0.0001 |
2 x 0.0002 |
10 x 0.001 |
25 x 0.002 |
50 x 0.005 |
100 x 0.01 |
200 x 0.02 |
500 x 0.05 |
1000 x 0.01 |
2000 x 0.02 |
5000 x 0.5 |
10,000 x 1 |
| kgf |
1 x 0.0001 |
1 x 0.0001 |
5 x 0.0005 |
10 x 0.001 |
25 x 0.002 |
50 x 0.005 |
100 x 0.01 |
250 x 0.02 |
500 x 0.05 |
1000 x 0.1 |
2500 x 0.2 |
5000 x 0.5 |
| N |
2.5 x 0.0005 |
10 x 0.001 |
50 x 0.005 |
100 x 0.01 |
250 x 0.02 |
500 x 0.05 |
1000 x 0.1 |
2500 x 0.2 |
5000 x 0.2 |
10,000 x 1 |
25,000 x 2 |
50,000 x 5 |
| gf |
250 x 0.05 |
1000 x 0.1 |
5000 x 0.5 |
10000 x 1 |
25000 x 2 |
50000 x 5 |
- |
- |
- |
- |
- |
- |
| ozf |
8 x 0.002 |
32 x 0.005 |
160 x 0.02 |
400 x 0.05 |
800 x 0.1 |
1600 x 0.2 |
- |
- |
- |
- |
- |
- |
| Deflect |
0.013 +0.004” |
0.015 +0.004” |
0.006 +0.003” |
0.008 +0.003”” |
0.012 +0.003” |
0.018 +0.003” |
0.013 +0.003” |
0.011 +0.003” |
| Accuracy |
+0.25% FS |
| Input Resistance |
1000 ohms ±100 |
| Output Resistance |
1000 ohms ±100 |
| Rated Output |
2.0 mV/V |
| Safe Overload |
150% Full Scale |
| Non-Linearity |
±0.05% Full Scale |
| Hysteresis |
±0.05% of Full Scale |
| Zero Balance |
±+0.1% of Full Scale |
| Operating Temperature |
40°F to 110°F - 5°C to 45°C |
| Instrument Weight |
1 lb (0.5 kg) |
| Shipping Weight |
1.5 lbs (0.7 kg) |

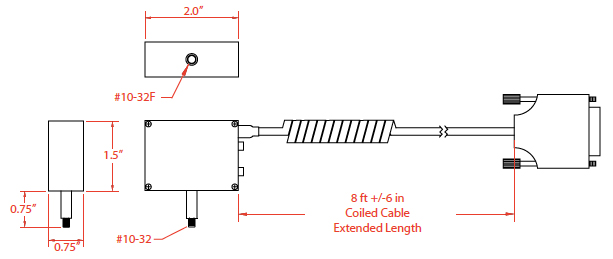

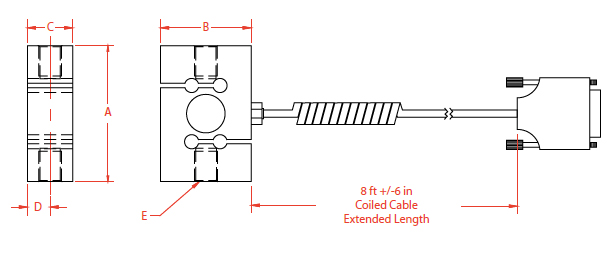

| Capacity |
A |
B |
C |
D |
E |
| 50 lbf |
2.48” |
2.0” |
0.61” |
0.31” |
1/4-28F |
| 100 lbf |
2.48” |
2.0” |
0.61” |
0.31” |
1/4-28F |
| 200 lbf |
2.48” |
2.0” |
0.61” |
0.31” |
1/4-28F |
| 500 lbf |
2.98” |
2.0” |
0.98” |
0.49” |
1/2-20F |
| 1000 lbf |
2.98” |
2.0” |
0.98” |
0.49” |
1/2-20F |

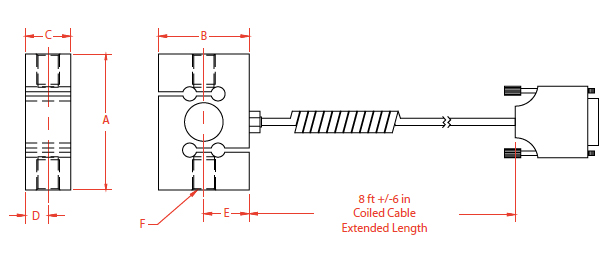

| Capacity |
A |
B |
C |
D |
E |
F |
| 2000 lbf |
3.44”” |
2.25” |
0.94” |
0.47” |
1/2-20F |
| 5000 lbf |
3.94” |
2.75” |
1.19” |
0.59” |
1.375” |
3/4-16F |
| 10,000 lbf |
3.94” |
3.0” |
1.43” |
0.71” |
1.5” |
3/4-16F |
