Mark-10 MR05-500 Push / Pull Sensors Force Sensors 500 lb

Test Equipment  >>   Force Gauges  >>   Force Sensor  >>   Mark 10  >>
Mark-10 MR05-500 Push / Pull Sensors Force Sensors 500 lb

Price: $831.25

In Stock
Ships within 24 hours

Free Shipping
(48 States)
Need Help? email us
Features

Specifications

SKU: MR05-500

Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Series R04 is available in capacities from 0.25 lb to 100 lb (1 N to 500 N). Every capacity has the same miniature dimensions. The sensors feature outstanding mechanical overload protection and threaded holes on two sides for the mounting of attachments or implements

Features

Series R04 smart sensors are designed for tension and compression measurement applications with tight space constraints. These extremely compact force sensors feature threaded holes on two sides, which can accept a variety of hooks and implements. Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with Mark-10 model 5i and 3i indicators (sold separately) through unique Plug & TestTM technology.

  • Compatible with the 5i and 3i digital indicators
  • Unique Plug & TestTM connector holds all calibration and configuration data

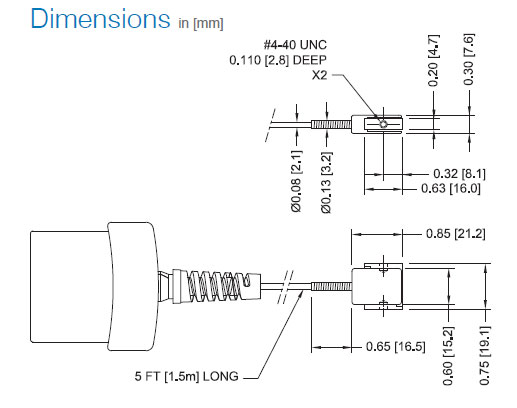

  • Ultra-compact size
  • Measures tensile and compressive forces
  • NIST-traceable certificate of calibration included
  • Accuracy: ± 0.2% of full scale ±1 digit + indicatorWeight: 0.015 lbs (0.007 kg)
  • Warranty: 3 years

Specifications

Model MR04-025 MR04-05 MR04-2 MR04-5 MR04-10 MR04-20 MR04-50 MR04-100
Capacity x Resolution
With Model 3i 		lbF 0.25 x 0.0002 0.5 x 0.0005 2 x 0.002 5 x 0.005 10 x 0.01 20 x 0.02 50 x 0.05 100 x 0.1
gF 100 x 0.1 250 x 0.2 - - - - - -
kgF - - 1 x 0.001 2.5 x 0.002 5 x 0.005 10 x 0.01 25 x 0.02 50 x 0.05
N 1 x 0.001 2.5 x 0.002 10 x 0.01 25 x 0.02 50 x 0.05 100 x 0.1 250 x 0.2 500 x 0.5
Capacity x Resolution
With Model 5i 		lbF 0.25 x 0.0001 0.5 x 0.0002 2 x 0.001 5 x 0.002 10 x 0.005 20 x 0.01 50 x 0.02 100 x 0.05
ozF 4 x 0.002 8 x 0.005 32 x 0.02 80 x 0.05 160 x 0.1 320 x 0.2 800 x 0.5 1600 x 1
gF 100 x 0.05 250 x 0.1 1000 x 0.5 2500 x 1 5000 x 2 10000 x 5 25000 x 10 50000 x 20
kgF - - 1 x 0.0005 2.5 x 0.001 5 x 0.002 10 x 0.005 25 x 0.01 50 x 0.02
N 1 x 0.0005 2.5 x 0.001 10 x 0.005 25 x 0.01 50 x 0.02 100 x 0.05 250 x 0.1 500 x 0.2
mN 1000 x 0.5 2500 x 1 - - - - - -
